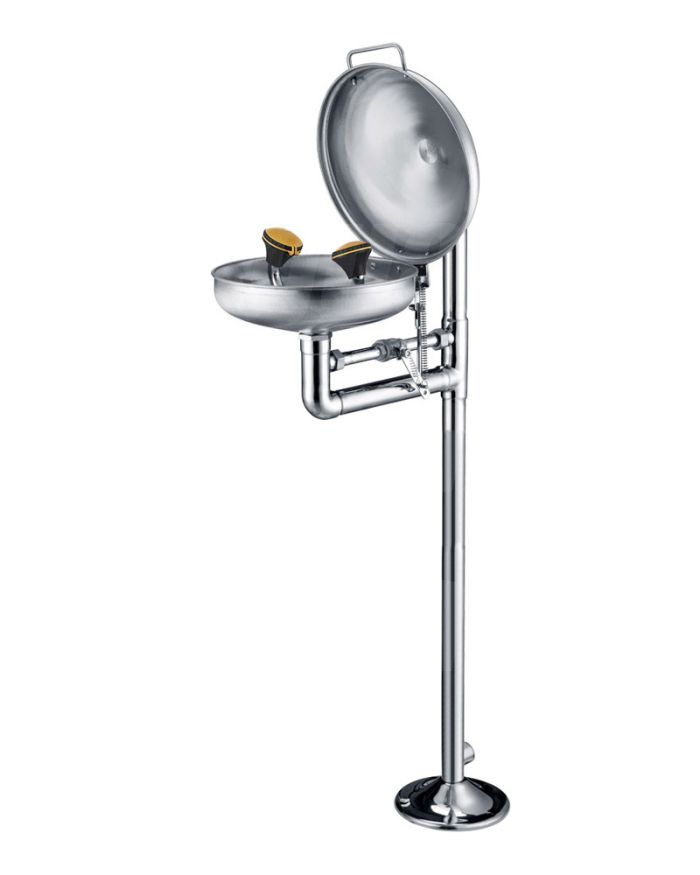

อ่างล้างตาฉุกเฉินแบบติดตั้งบนพื้น WJH0959B Floor-Mount Emergency Eye Wash
FLOOR-MOUNT EMERGENCY EYE WASH
● Materials: SS304
● Surface finishing: fine-polished
● Function: eye and face washing
● Eye wash switch: two-piece ball valve
● Stainless steel dust cover: integrated cover, effective dust isolation
● Pipe diameter: 38mm
● Nominal pressure: 1.0Mpa
● Working pressure: 0.2~0.4Mpa
● Test pressure: 1.5Mpa
● Working environment temperature: 0°C~40°C
● Eye wash/face wash water flow: ≥11.4 L/min
● Eye wash bowl: 300mm straight edge design, gather water, prevent splash
● Dust cover: integrated design of main body, not easy to lose
● Inner size: Rp 3/4" , female
● Outlet size: Rp 1" , female
● Inlet height: 1065mm
● Outlet height: 90mm
★ Product features:After the use of eye wash and face wash is stopped, the water in the pipeline will be drained automatically to achieve the purpose of anti-freezing.
● Materials: SS304
● Surface finishing: fine-polished
● Function: eye and face washing
● Eye wash switch: two-piece ball valve
● Stainless steel dust cover: integrated cover, effective dust isolation
● Pipe diameter: 38mm
● Nominal pressure: 1.0Mpa
● Working pressure: 0.2~0.4Mpa
● Test pressure: 1.5Mpa
● Working environment temperature: 0°C~40°C
● Eye wash/face wash water flow: ≥11.4 L/min
● Eye wash bowl: 300mm straight edge design, gather water, prevent splash
● Dust cover: integrated design of main body, not easy to lose
● Inner size: Rp 3/4" , female
● Outlet size: Rp 1" , female
● Inlet height: 1065mm
● Outlet height: 90mm
★ Product features:After the use of eye wash and face wash is stopped, the water in the pipeline will be drained automatically to achieve the purpose of anti-freezing.
★ Note: The inlet part and outlet part are customizable;shut off valve and filter are proposed to be equipped on the water-supply end.
