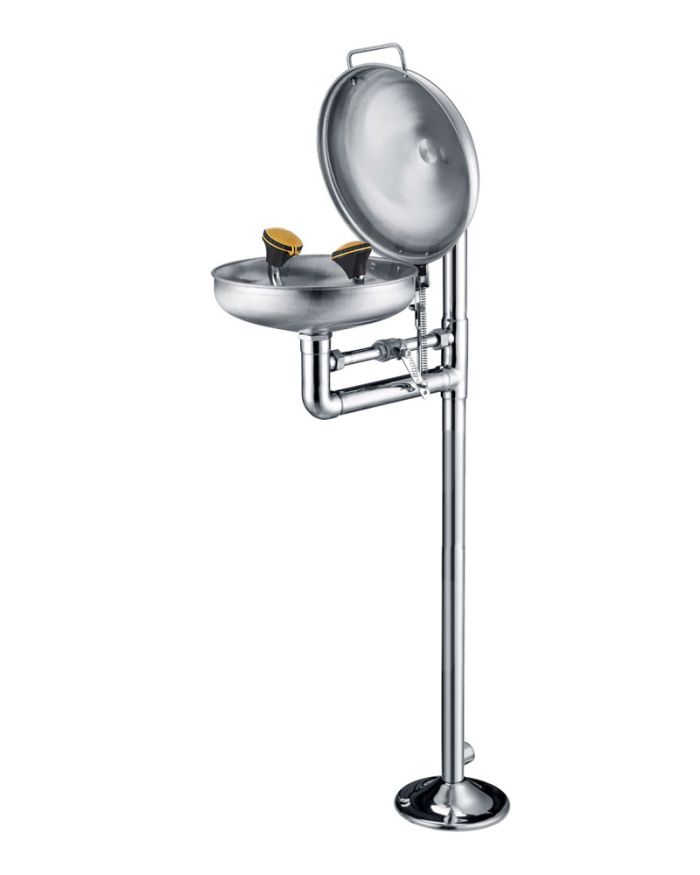

อ่างล้างตาฉุกเฉินแบบติดตั้งบนพื้น WJH0959 Floor-Mount Emergency Eye Wash
Custom Tab 1
At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi sint occaecati cupiditate non provident, similique sunt in culpa qui officia deserunt mollitia animi, id est laborum et dolorum fuga. Et harum quidem rerum facilis est et expedita distinctio. Nam libero tempore, cum soluta nobis est eligendi optio cumque nihil impedit quo minus id quod maxime placeat facere possimus, omnis voluptas assumenda est, omnis dolor repellendus. Temporibus autem quibusdam et aut officiis debitis aut rerum necessitatibus saepe eveniet ut et voluptates repudiandae sint et molestiae non recusandae. Itaque earum rerum hic tenetur a sapiente delectus, ut aut reiciendis voluptatibus maiores alias consequatur aut perferendis doloribus asperiores repellat.
รายละเอียด (Specification)
รายละเอียด
FLOOR-MOUNT EMERGENCY EYE WASH
● Materials: SS304
● Surface finishing: fine-polished
● Function: eye and face washing
● Eye wash switch: two-piece ball valve
● Pipe diameter: 38mm
● Nominal pressure: 1.0Mpa
● Working pressure: 0.2~0.4Mpa
● Test pressure: 1.5Mpa
● Working environment temperature: 0°C~40°C
● Eye wash/face wash water flow: ≥11.4 L/min
● Eye wash bowl: 300mm straight edge design, gather water, prevent splash
● Dust cover: integrated design of main body, not easy to lose
● Inner size: G 1/2" , male
● Outlet size: Rp 1" , female
● Inlet height: 753mm
● Outlet height: 86mm
● Product features: After the use of eye wash and face wash is stopped, the water in the pipeline will be drained automatically to achieve the purpose of anti-freezing.
★ Note: The inlet part and outlet part are customizable;shut off valve and filter are proposed to be equipped on the water-supply end; Stainless steel foot treadle can be added to control the eye wash switch.
● Materials: SS304
● Surface finishing: fine-polished
● Function: eye and face washing
● Eye wash switch: two-piece ball valve
● Pipe diameter: 38mm
● Nominal pressure: 1.0Mpa
● Working pressure: 0.2~0.4Mpa
● Test pressure: 1.5Mpa
● Working environment temperature: 0°C~40°C
● Eye wash/face wash water flow: ≥11.4 L/min
● Eye wash bowl: 300mm straight edge design, gather water, prevent splash
● Dust cover: integrated design of main body, not easy to lose
● Inner size: G 1/2" , male
● Outlet size: Rp 1" , female
● Inlet height: 753mm
● Outlet height: 86mm
● Product features: After the use of eye wash and face wash is stopped, the water in the pipeline will be drained automatically to achieve the purpose of anti-freezing.
★ Note: The inlet part and outlet part are customizable;shut off valve and filter are proposed to be equipped on the water-supply end; Stainless steel foot treadle can be added to control the eye wash switch.
