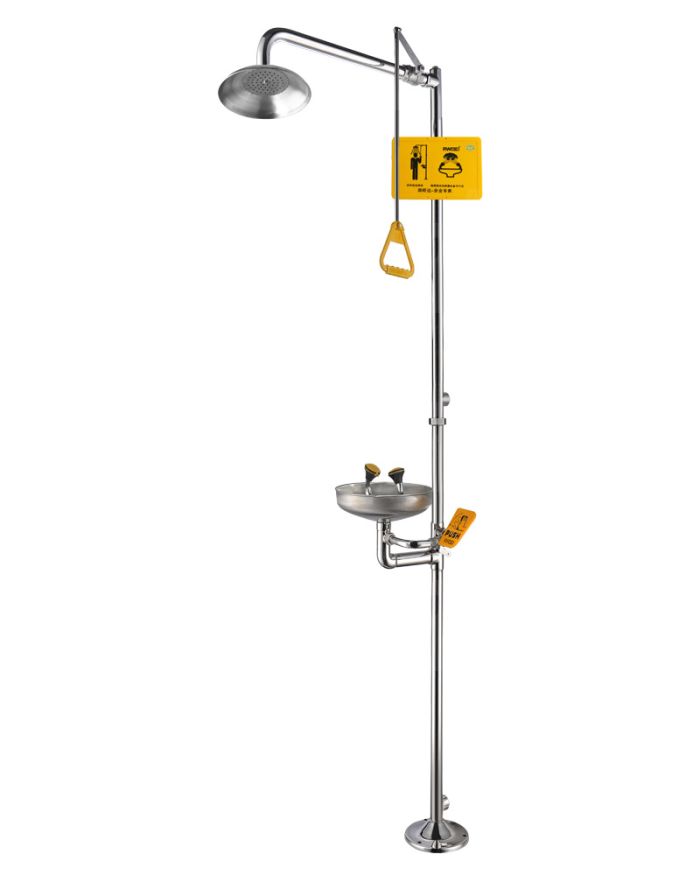

ฝักบัวฉุกเฉินและอ่างล้างตาแบบผสม WJH0358A-1 Combined Emergency Shower & Eye Wash
COMBINED EMERGENCY SHOWER & EYE WASH
● Material: Stainless Steel 304
● Surface finishing: Fine polish/high brightness antioxidant coating
● Assembling feature: the "Union" allows easier pipe connection and disconnection
● Usage: drenching body and rinsing faces / eyes can be operated separately or simultaneously
● Shower & eye wash switch: two-piece ball valve
● Shower head: spinning-formed with curled rim, diameter 250 mm
● Pipe diameter: 38 mm
● Nominal pressure: 1.0 Mpa
● Working pressure: 0.2~0.4 Mpa
● Testing pressure: 1.5 Mpa
● Temperature requirement on working environment: 0°C~40°C
● Flow rate of body shower: ≥76 L/min
● Flow rate of eye/face wash: ≥11.4 L/min
● Flow rate of eye wash: ≥1.5 L/min
● Eyewash bowl features: 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing
● Dust cover: integrated with the spray head ( not connected by chain ),and easily removed by water flow.
● Spray head feature : patented design, each spray head equips with one water-flow control valve
● Inlet thread: Rp 1" , female
● Outlet thread: Rp 1" , female
● Inlet height ( from above the floor ): 1186 mm
● Outlet height ( from above the floor ): 86 mm
● Distance between spray heads: 170 mm
● Water pattern coverage: at the height of 1520 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter
● Material: Stainless Steel 304
● Surface finishing: Fine polish/high brightness antioxidant coating
● Assembling feature: the "Union" allows easier pipe connection and disconnection
● Usage: drenching body and rinsing faces / eyes can be operated separately or simultaneously
● Shower & eye wash switch: two-piece ball valve
● Shower head: spinning-formed with curled rim, diameter 250 mm
● Pipe diameter: 38 mm
● Nominal pressure: 1.0 Mpa
● Working pressure: 0.2~0.4 Mpa
● Testing pressure: 1.5 Mpa
● Temperature requirement on working environment: 0°C~40°C
● Flow rate of body shower: ≥76 L/min
● Flow rate of eye/face wash: ≥11.4 L/min
● Flow rate of eye wash: ≥1.5 L/min
● Eyewash bowl features: 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing
● Dust cover: integrated with the spray head ( not connected by chain ),and easily removed by water flow.
● Spray head feature : patented design, each spray head equips with one water-flow control valve
● Inlet thread: Rp 1" , female
● Outlet thread: Rp 1" , female
● Inlet height ( from above the floor ): 1186 mm
● Outlet height ( from above the floor ): 86 mm
● Distance between spray heads: 170 mm
● Water pattern coverage: at the height of 1520 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter
★ Notes: the inlet part and outlet part are customizable;shutoff valve and filter are proposed to be equipped on the water-supply end;stainless steel – made foot treadle is optional as eye wash switch.
| สี | default |
|---|---|
| ผู้ผลิต | แอสการ์ด |
